The basic idea of introducing SoC into electric devices is to integrate more components into the same piece of silicon to reduce size and cost while enhancing performance. |
SoC Architecture

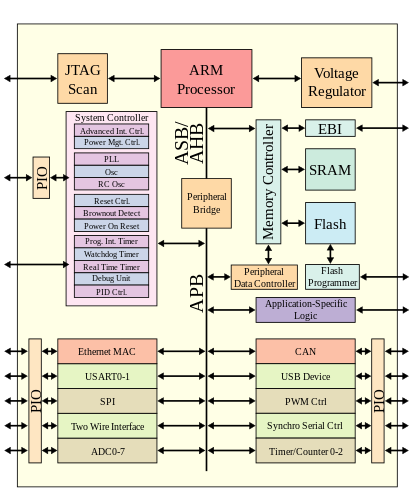

A typical SoC structure consists of below components (not including the SW and integration here).
- Processor(CPU)
- Memory(SRAM)
- Peripheral systems and interfaces connected to the CPU via a SoC bus
And more components can be integrated, for example,
- Flash memory for program storage
- GPU(a graphics processor)
- USB controller
- power management circuit
- Wireless radio functional IP(WiFi, 3G, 4G LTE, and so on)

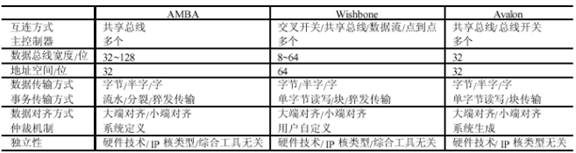

Another important part in the SoC is the interconnections for the embedded components, and many kinds of interconnection protocols are available. And below are some examples.
- AMBA (Advanced Microcontroller Bus Architecture)
- Wishbone: originates from Silicore and now becomes open cores
- Avalon
AMBA is a collection of buses from ARM for satisfying a range of different criteria:
- APB (Advanced Peripheral Bus): simple strobed-access bus with minimal interface complexity. Suitable for hosting peripherals.
- ASB (Advanced System Bus): a multi-master synchronous system bus.
- AHB (Advanced High Performance Bus): a high- throughput synchronous system backbone. Burst transfers and split transactions.
- AXI(Advanced eXtensible Interface, from AMBA3.0 on): supports high-performance, high-frequency system designs for communication between master and slave components; suitable for high-bandwidth and low-latency designs.
The SoC can come into several forms, as below.
- Dedicated SoC ASIC(Application Specific IC)
Highly integrated;
For dedicated application: e.g., 5G processor
- MCU SoC
- SoC FPGA
Both reconfigurable/programmable logic(FPGA) and programmable software(MPU SW)
