Waveforms and Functions in Circuit Analysis
Sigularity Functions(Switching Functions)
Used to simulate the switching signals as excitations in the circuit.They are either discontinous or have discontinuous deriatives.

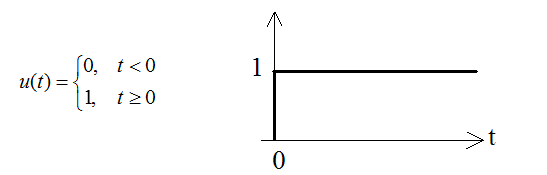

1. Unit Step Function

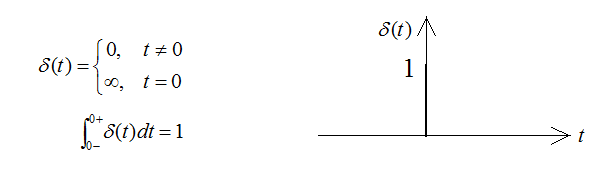

2. Unit Impulse Function

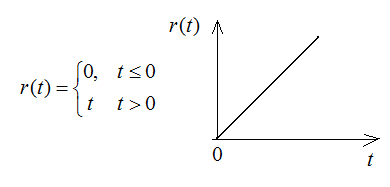

3 Unit Ramp Function
